E-Sessanta 60” News!

Yes, finally the very popular 1.5M Sessanta is available with an E-Fuselage. Note this is not quick re-hash. I have carefully re-designed and made new moulds for this new E-Model with slightly modified curves so as to allow for a wide range of batteries and motors - but it still looks good! Note that the 6mm Rudder and Elevator servos are now now mounted in the fin to give more room for the motor and battery etc. The spinner diameter is 32mm.

Talk to your friendly neighborhood Aeroic dealer!

Every Aeroic model comes (S) standard 100% single carbon wing, and carbon tissue surface laminated tail planes.

Light and SS (double carbon) versions are available build to order.

Models general layups information:

Light – Mostly glass fibre layup with carbon tissue wings and tailplanes with some carbon and Kevlar reinforcement.

S – Single carbon wing and fuselage with carbon tissue tailplanes, Kevlar fuselage front (2.4 GHz friendly).

SS – Double carbon wing and carbon fuselage and double ASWS with carbon tissue tailplanes, Kevlar fuselage front (2.4 GHz friendly).

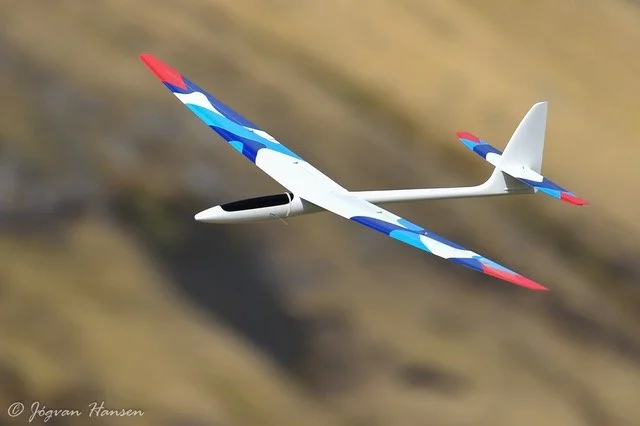

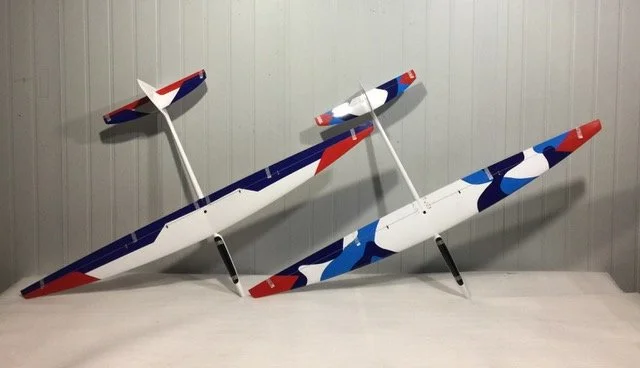

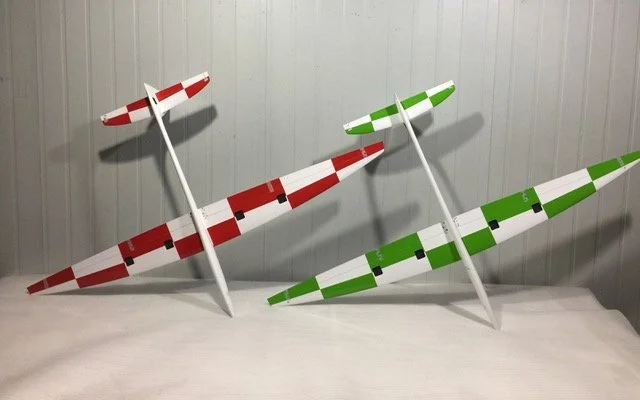

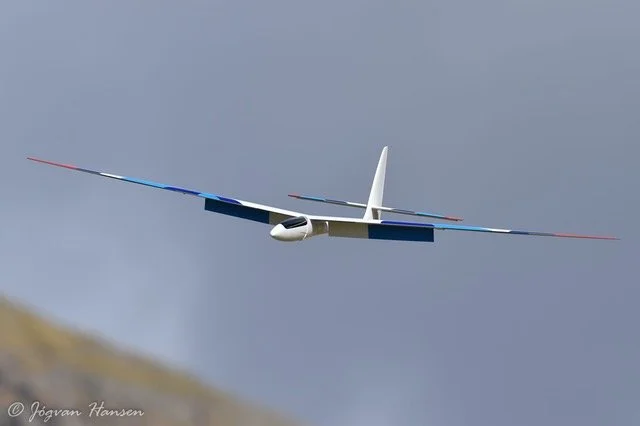

Sessanta 60” (1.5M)

Sessanta basic information:

60’ slope racing model, good looking, fast and aerobatic but also easy to fly and land. Single piece wing with its HSWS gives great strength for really fast flying while L and S versions fly well in light winds and the SS version rocks in moderate winds to a gale. Elevator and rudder servos are easily mounted in the fin and accesses via a convenient moulded-in hatch.

Construction: GFK/CFK Hybrid (Aeroic)
Wings: Carbon with Aeroic Sine Wave Spar
Fuse: Strong Carbon/Kevlar Reinforced Glass (2.4Ghz friendly)

Specifications:

Span:                                                               60” (1.5M)

Length:                                                            37.375” (950mm)

Wing area:                                                      349 Sq” (22.9Dm)

Centre of Gravity 70mm from Leading edge

Wing aerofoils:                                               JH3580, JH3575, JH3570

Tailplane aerofoils:                                        JH10SYM

Controls:                                                         Ailerons, Flaps, Elevator, Rudder

Servos:                                                            10mm (Fuselage/Flaps) 8mm (Ailerons)

Designer:                                                        Dr. James D. Hammond

E-Sessanta 60”:

Electric version of the Sessanta with slightly enlarged fuselage and round nose exit to accommodate a spinner. All other details are the same as the glider version.

Note the extensive hardware package included in every Aeroic kit. The Corsa kit includes: Fuselage ballast tube, pre-wired servo harness that matches molded in fuse and wing pockets, elevator and rudder servo extensions, linkage set including elevator ball link, aileron and flap pushrods with quality metal clevis’, servo frames, color matched control horn covers, both hollow and solid carbon tail spars, color matched flat and bump wing servo covers & tail closeout cover, wing bolts and matching allen wrench.
